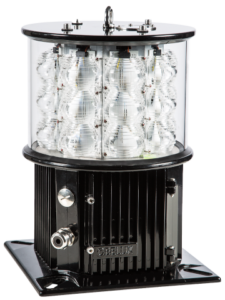

Heliport Beacon, Stand-alone
Key features
- Based on LED technology
- Doesn’t require any additional controllers
- Incorporated photocell for automatic intensity adjustment
- Several intensity adjustment levels available
- Infrared (850 nm) incorporated for NVG compatibility
- Aluminium body and glass cover
- Height only 408 mm, and weight 14 kg
- Operating voltage 100–240 VAC
- 5-year warranty – the longest in the industry
Description
Heliport beacon provides a long range visual guidance and identification of the heliport. The heliport beacon is located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.
Optical Characteristics
- Colour White
- Flash Characteristics 0.8 sec – 1.2 sec – 0.8 sec, flash duration 0.5–2.0 milliseconds
- Horizontal beam 360°
- Vertical beam
- Vertical angle 0…1.5° – Min. Intensity 1,700 cd (effective)
- Vertical angle 1.5…2.5° – Min. Intensity 2,500 cd (effective)
- Vertical angle 2.5…4° – Min. Intensity 1,700 cd (effective)
- Vertical angle 4…7° – Min. Intensity 750 cd (effective)
- Vertical angle 7…10° – Min. Intensity 250 cd (effective)
Standards & Certifications
- ICAO Annex 14, 5th Edition (2020), Heliport Beacon
