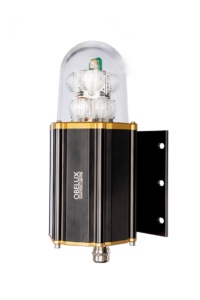

ICAO Medium-Intensity Type B/C (2,000 cd Red), with infrared
Key features
- 2 000 cd RED fixed or flashing (configurable also for 200 cd)
- NVG compliant infrared (850nm)
- Suitable for Offshore environment
- Operates stand-alone or in a system connected via Modbus RTU (RS-485) or Modbus TCP
- Built-in GPS synchronization
- Built-in photocell
- Optional cold-climate version (CCV) with an integrated temperature-controlled heater
- Fault monitoring via a dry-contact alarm relay
- Interface for controlling luminous output levels (10%, 30%, 100%) via an external visibility sensor
- Hot-start feature for radar-controlled systems
- 5-year warranty
- Option for 10-year warranty, the longest in the industry
Description
The Obelux ICAO Medium-Intensity Type B/C red model with infrared is ideal for marking tall structures such as wind turbines, transmission masts, chimneys, broadcast towers, and bridges. Built for durability and reliability in even the harshest environments, it is an excellent choice for offshore wind turbines. The light features integrated fault monitoring, a photocell, and GPS synchronisation. It can operate as a stand-alone unit or seamlessly connect to an Obelux aviation light system via Modbus RTU (RS-485) or Modbus TCP.
Optical Characteristics
- 2 000 cd fixed or flashing
- Color aviation RED
- Configurable for 200 cd
- NVG compliant infrared (850nm)
- Horizontal beam 360°
- Vertical beam larger than 3°
Standards & Certifications
- ICAO International Standards and Recommended Practices: Aerodromes Annex 14 Volume 1, 8th Edition, July 2018, Chapter 6: Medium-intensity Type B/C. Fulfills the recommendations section in Table 6-3. (1,125 cd Maximum Intensity @ vertical elevation angle -1° and 75 cd Maximum Intensity @ vertical elevation angle -10°)
- 1 125 cd Maximum Intensity @ vertical elevation angle -1°
- 75 cd Maximum Intensity @ vertical elevation angle -10°
- FAA compliant, Advisory Circular AC 150/5345-43J: Specification for Obstruction Lighting Equipment, 3/11/2019 FAA L-864, L-885
